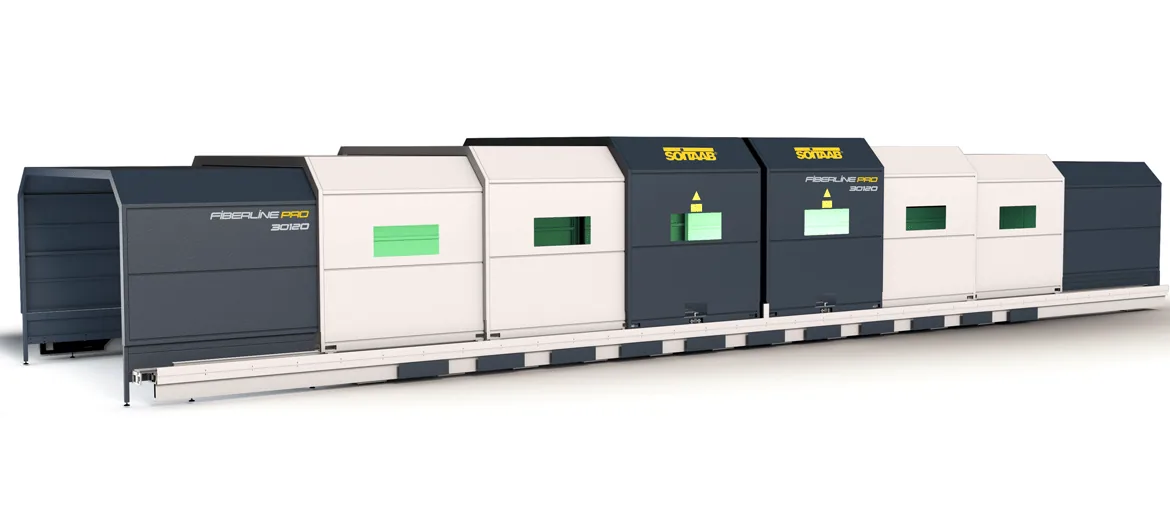

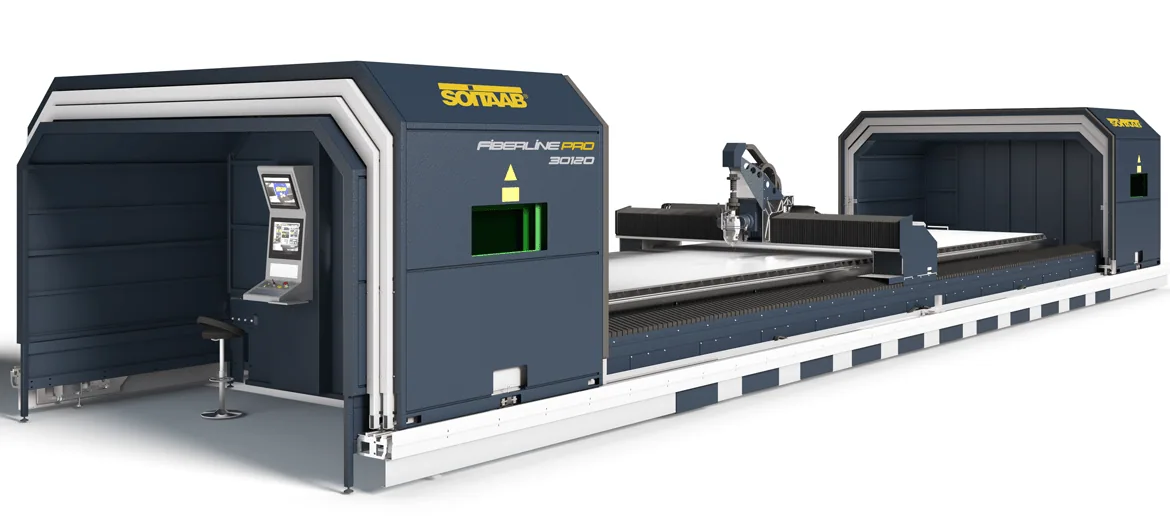

SOITAAB LASERtech Fiberline PRO
Soitaab’s new range of fiber laser machines offers the best technology for versatility, accuracy, and high performance cutting. High productivity and reliability on a variety of materials and thicknesses.
Cutting Quality at the highest level with simple and complete process control through our efficient and intuitive parameter driven CNC interface.
| WORK AREA | 5'x10'/6½x13'/6½x20' Others upon request |
| MAX SPEED | 220 m/min |
| ACCELLERATION | 5½/S² |
| ACCURACY | Position = 0,05 mm | Repeatability = 0,03 mm |
| STANDAR FIBER LASER POWER | 2,3,4,6,8,10,12 kw |
| CUTTING THICKNESS | Carbon Steel: from 0.04" to1 3/16" |
| Stainless Steel: from 1 to 1" | |
| Aluminum: from 0.04" to 1" |
| WORK AREA | 8'x20'/11½x20'/11½x40'/11½x80' Othersupon request |
| MAX SPEED | 220 m/min |
| ACCELLERATION | 1 g |
| ACCURACY | Position = 0,05 mm | Repeatability = 0,03 mm |
| STANDAR FIBER LASER POWER | 2,3,4,6 kw |
| CUTTING THICKNESS | Carbon Steel: from 0.04" to1 3/16" |
| Stainless Steel: from 1 to 1" | |
| Aluminum: from 0.04" to 1" |
