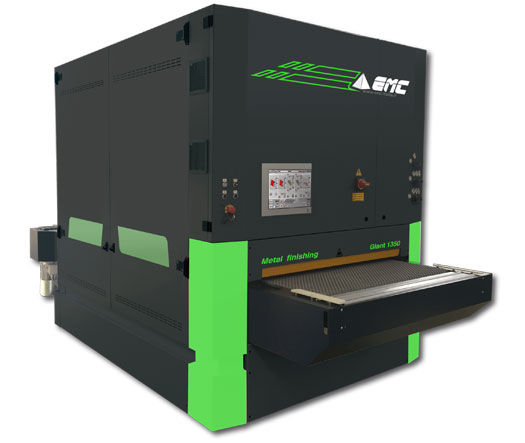

EMC GIANT M1350
It is the largest in its category. Thanks to its structure it can be equipped with 1 to 4 units (or more). Thanks to its multiple configurations, it is ideal for satin finishing, deburring, edge grinding and removing scale on any type of material. This high degree of dynamism makes it FLEXIBLE and RELIABLE over time. Its useful working width can be 1350 mm or 1650 mm (or more). Thanks to the 900 mm fixed height worktable, it can be placed in LINE with other machines or work STAND ALONE.
Main parameters
- Number of working units – 1-4 pc and more.
- Working width – 1350 mm (dry processing).
- Workind width – 1350 mm (wet processing).
- Working thickness – 0,5-150 mm.
- Working table height – 900 mm.
- Total work table load – 500 kg.
- Electronic controls via Touch Screen Display 15,4”.

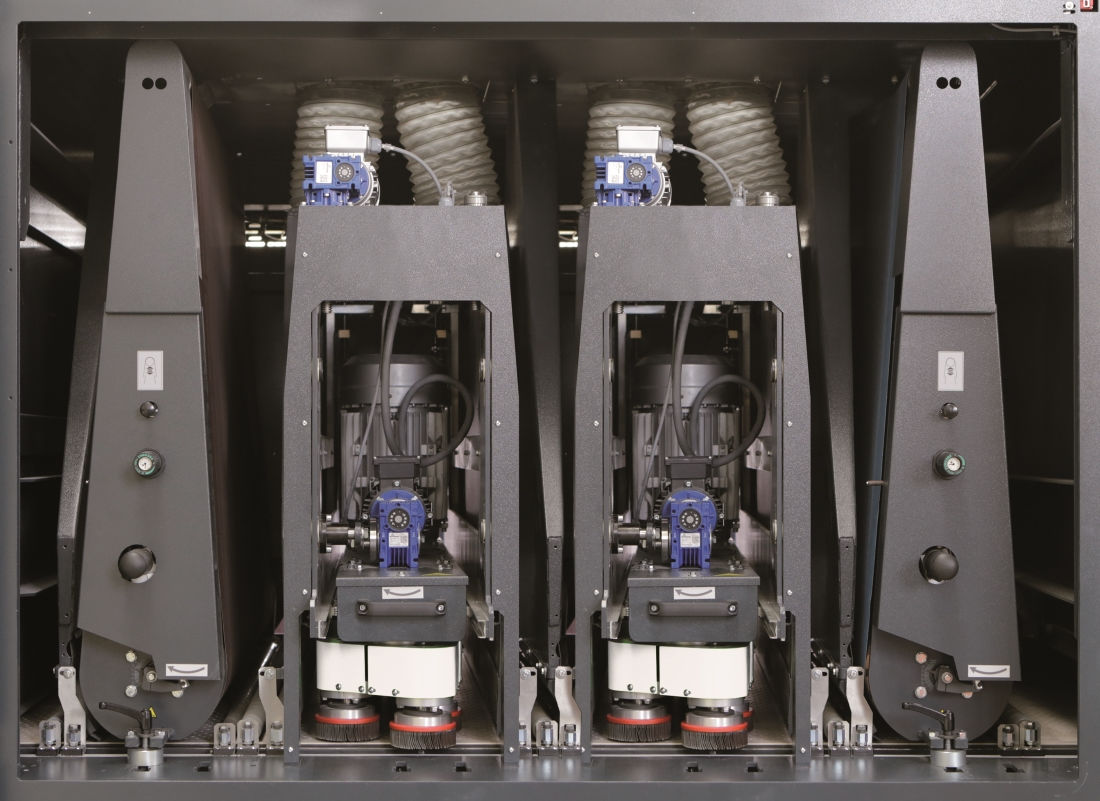

- Internal independent motors.
- Internal vacuum device.
- Feed belt inverter.
- Electronic motorized roller pressure adjustment “Grit Set”.
- Tele service.
- Table rollers and table extensions.
- Brushes for panel/feed belt cleaning and double external brush unit.
- Possibility to work in line with other machines.
Types of processing
- Dry processing.
- Wet processing.
- Grinding.
- Deslagging.
- Deburring.
- Edge rounding.
- Calamine removal.
- Surface finishing.
| Working unit - Roller Group (R) | |
| Abrasive belt length | 2620 / 3250 mm |
| Roller diameter | Ø250 / Ø300 mm |
| Motor power | 15 kW |
| Inverter for variable belt speed | from 3 to 21 m/sec |
| Working unit - Discs Group Internal (h, H, Q) |
| The parameters are selected on the basis of production objectives. |
| Working unit - Brush Group internal (B) |
| The parameters are selected on the basis of production objectives. |

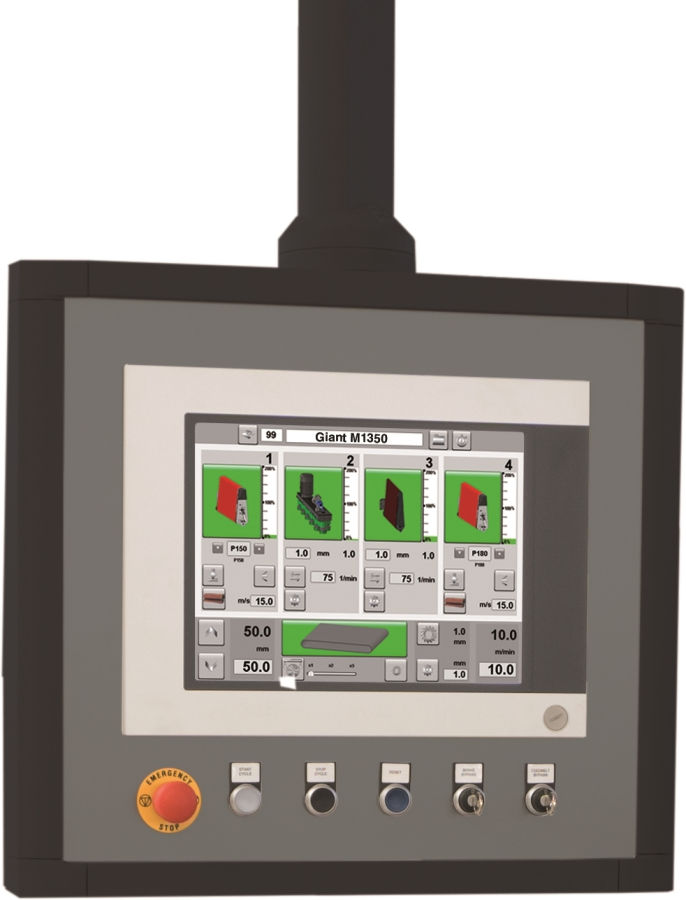

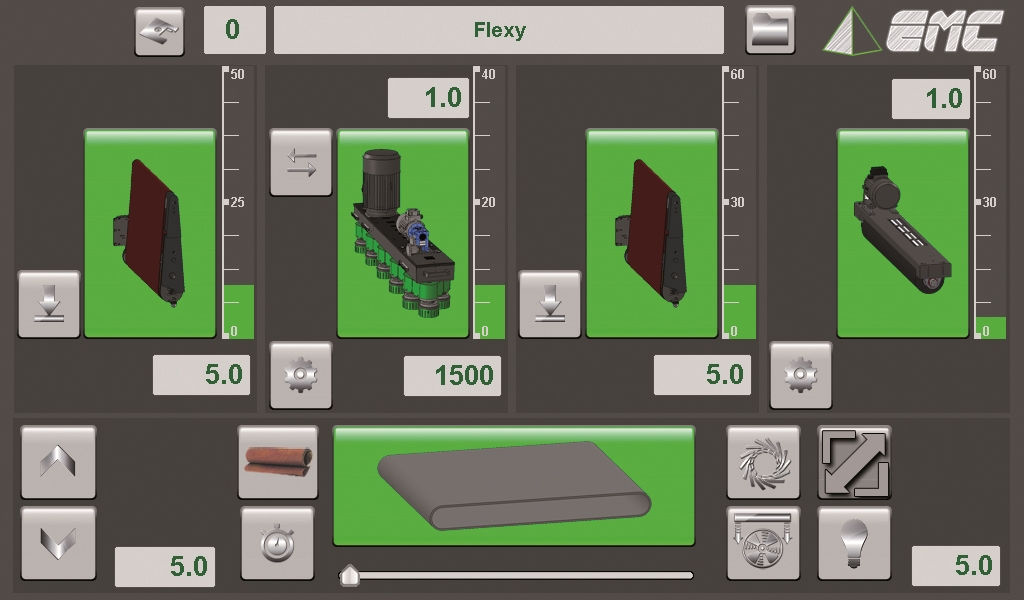

| Colour TSD - Touch Screen Display 15.4", wide type, resistive | |
| Connection | USB, RS232, Ethernet 10/100/1000 |
| Memory capacity | over 100 working programs |
| Automatic motor start sequence | |
| Command, programming and display of all electronic functions | |
| Command, programming and display of thickness | |
| Command and display of selected groups (on-off) | |
| Command, programming and display of electronic motorized Grit Set to any position according to grit | |
| Command, programming and display for all inverters | |
| Command, programming and display for blowers, including compressed air saving | |
| Command, programming and display for feeding | |
| Report display and alarm reset (self-diagnostic) with memory records | |
| Front protection: IP65 |

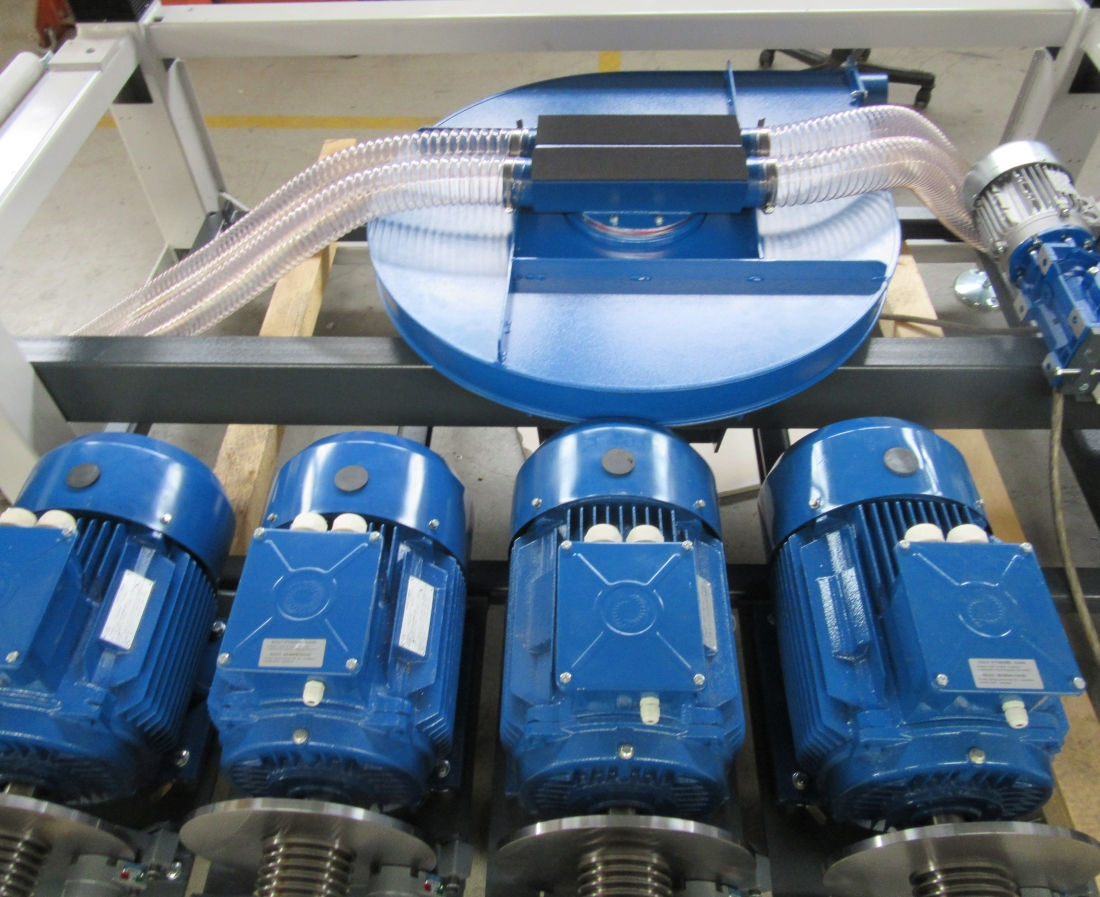

Vacuum device inside the machine
Vacuum table system for small piece holding, fan 4kW + inverter. Complete with drilling, carpet punched and full length vacuum chamber with high density.
Custom machine with remote control, statistics display and virtual assistance

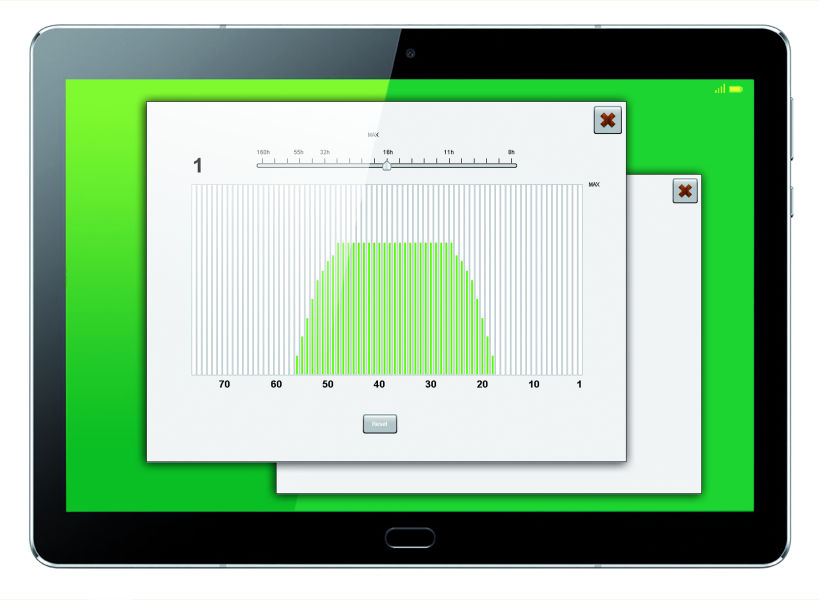

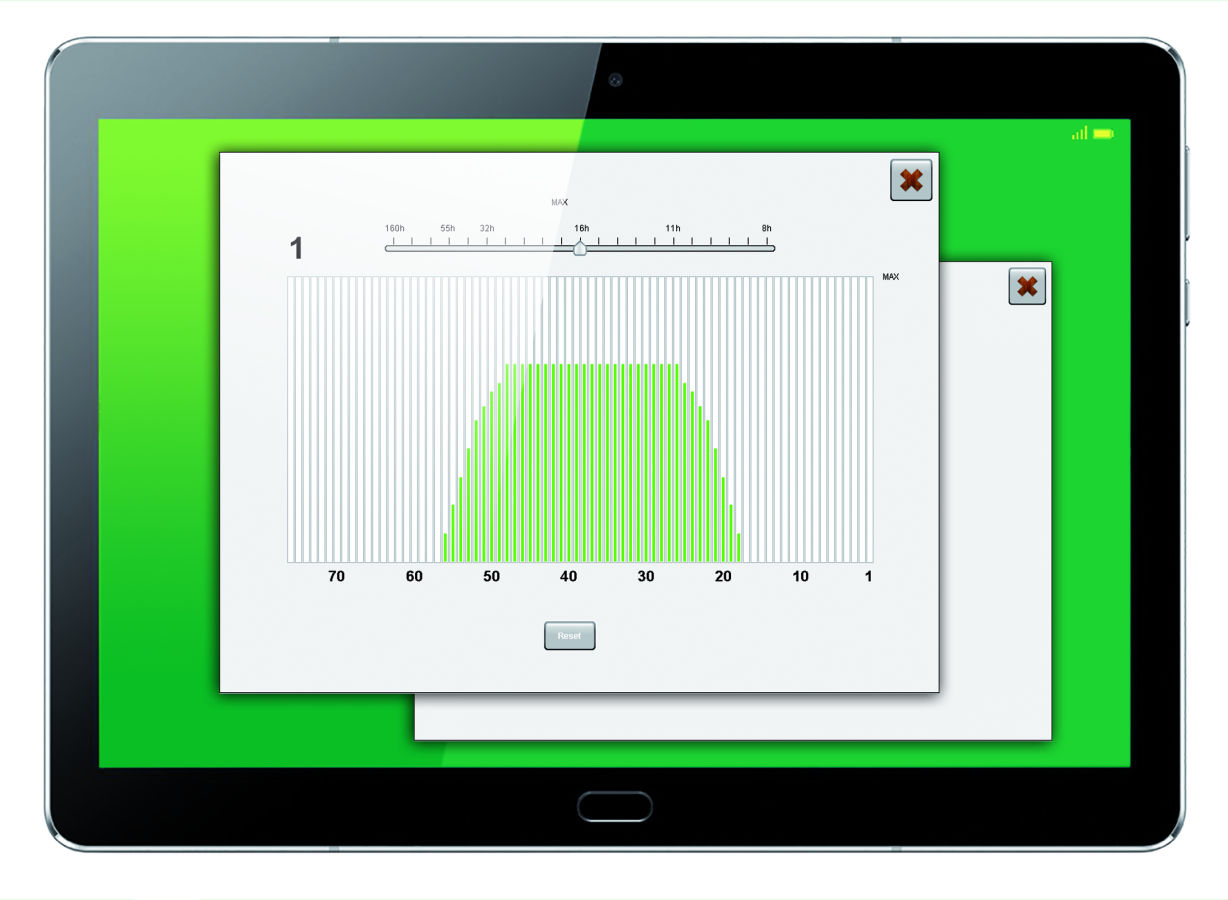

Electronic motorized roller pressure adjustment "Grit Set"
