Fx bend Cell 1547-KR 70 STANDARD

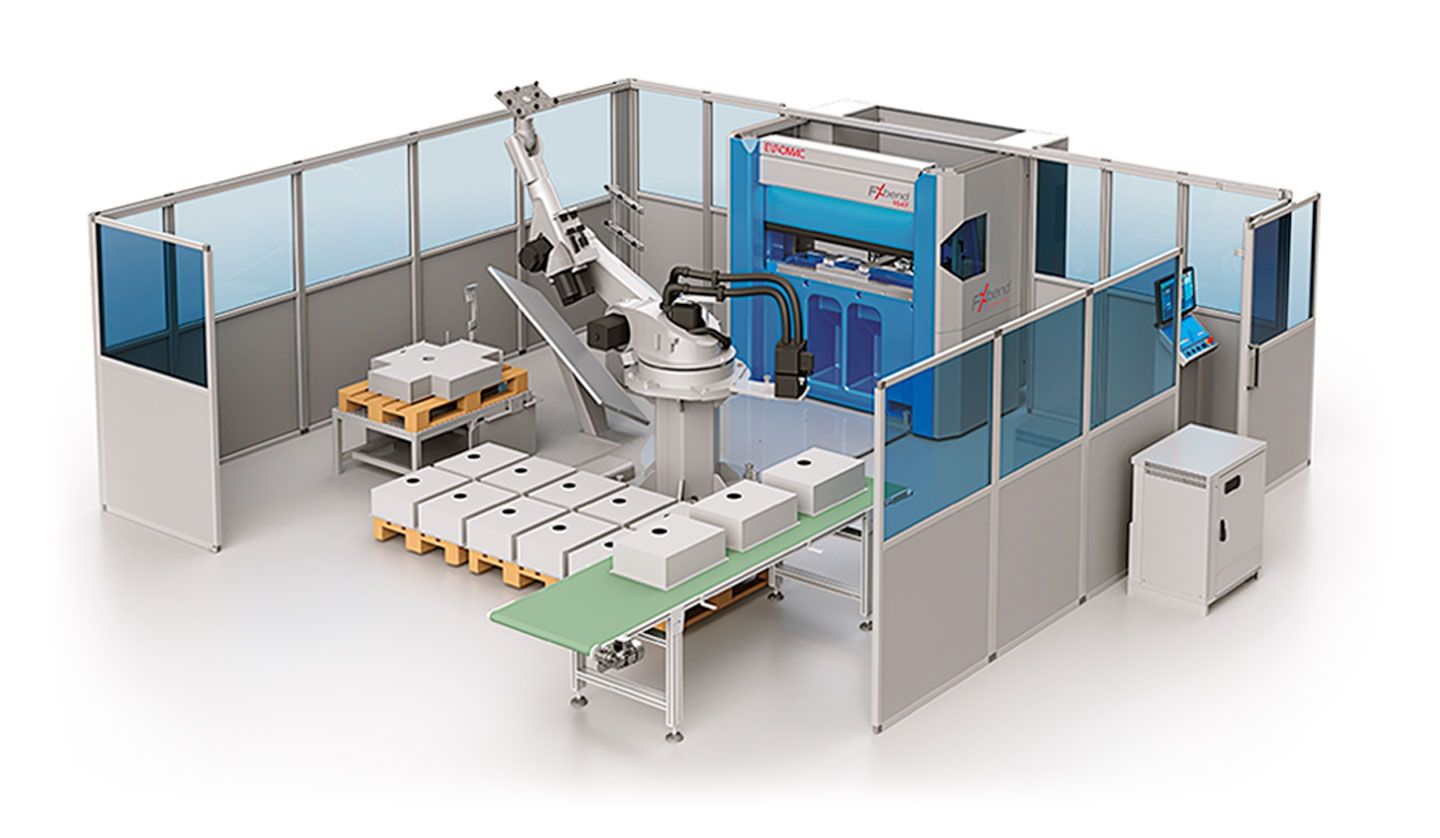

The ideal solution for workpieces up to 1500 x 800mm. Large-capacity robot, with 2 different unloading configurations that can be modulated based on the customer productivity.
Cell for small and medium sized pieces with a high production capacity.
| cell 1547 | |
| Max. bending force (kN) | 470 |
| Bending length (mm) | 1530 |
| Unloading | |
| Promecam clamping (die holder - to ram ) (mm) | 470 |
| Y axes stroke (mm) | 250 |
| Y axes speed (mm/sec) | 200 |
| Max. bending speed automatic mode (mm/sec) | 36 |
| Max. bending speed manual mode (mm/sec) | 10 |
| Robot | |
| Max. reach (mm) | 2233 |
| Max. payload with gripper (kg) | 60 |
| Number of axes | 6 |
| Pose repeability (mm) | +-0.06 |
| FX Cell | |
| Maximum parts dimension 1 stack (mm) | 1500x800 |
| Minimum parts dimension (mm) | 50 x 100 |
| Maximum stack height (mm) | 300 |
| Maximum thicknes (mm) | 5 |
| Minimum thicknes (mm) | 0,7 |
| Maximum part weight (kg) | 30 |
| Unloading | |
| Belt conveyor Max. parts dimension (mm) | 1000 x 600 x h 300 |
| Belt conveyor buffer length (mm) | 600 scarico + 600 |
| Area for gravity unloading (mm) | 1200x800 |
| Connected load (kWa) | 6 |
| Approx, weight (kg) | 6200 |
