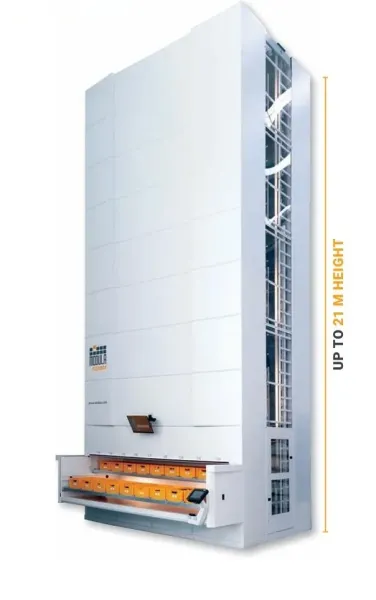

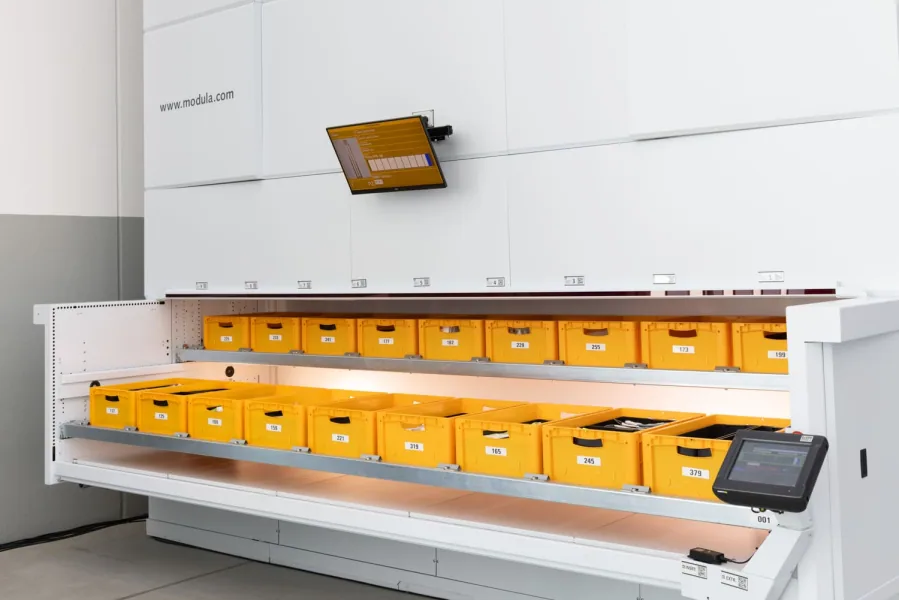

Modula FlexiBox - ML
| Parameter | Value |
| Number of containers per shelf | 9 |
| Base dimensions (internal window) | 4 517 x 2 556 mm |
| Base dimensions (external window) | 4 517 x 3 246 mm |

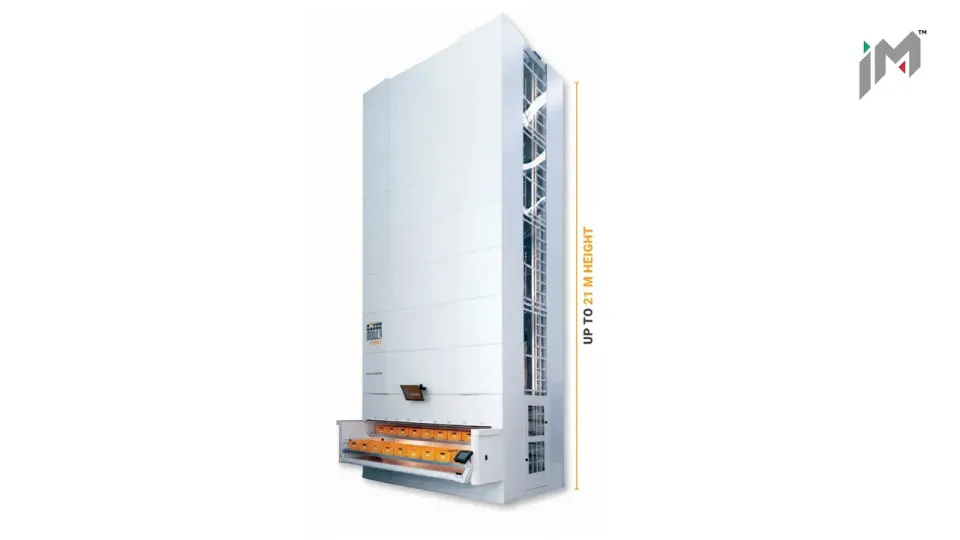

| Installation height | from 3,300 mm to 21,000 mm |
| Height adjustment step | 200 mm |
| Container dimensions | 600 x 400 mm |
| Container height range | from 120 to 420 mm |
| Maximum load per container | 35 kg |
| Number of access openings | up to 3 (including levels above floor) |
| Maximum throughput | up to 180 containers per hour |
Modula is a visionary company, with the digitalization of processes as one of its core strengths. Over the years, it has opted for 100% Modula production according to a robust strategy of automation of production lines and insourcing of manufacturing and process know-how. This has made the company stronger in terms of product quality, market competitiveness, and process knowledge.
Modula has chosen to focus on the vertical production of a single type of product and has always dedicated significant resources to research and development. Consequently, it has developed a wide range of models and configurations at its warehouses. Foresight in investment has resulted in the dedication of over €150 million to state-of-the-art production facilities in Italy, the United States, and China.
Production Process
Everything happens automatically. Starting with the cutting of panels directly from rolls of sheet steel, production moves swiftly through to finished components. The flow of single parts, kits, or batches depends on specific orders. Production is managed just-in-time and monitored step-by-step by the proprietary MPS (Modula Production System) software.
This software manages requirements linked to sales orders and provides full control over the progress of each order via an integrated barcode reader system. MPS communicates with MRP and ERP systems for the automatic scheduling of work requests. This interconnection via robots and software allows for reduced costs, increased productivity, and real-time control.
Why Modula?
-
30+ years of experience in the development of automatic storage solutions.
-
Work completed for over 20,000 clients and major brands across various sectors.
-
Belief in the vertical project since the ’80s, with constant product improvement.
-
Profound software knowledge, enabling integrated and customized solutions.
-
Collaboration with numerous partners for integrations: from anthropomorphic robots to AMRs, AGVs, and conveyors.
Ideal Applications for Modula Flexibox
Automotive Industry
-
Ideally suited for managing a large number of SKUs.
E-commerce
-
High throughput and order processing accuracy.
-
Scalability of operations according to business growth.
-
Solution for ultra-dense storage of goods.
Electronics Industry
-
Safe and reliable storage of components.
-
Possibility of organizing work in an antistatic environment (ESD protection).
Retail
-
High picking speed and fast access to inventory.
-
Improving customer service through rapid assembly.
Pharmaceutical Industry
-
Compliance with strict regulatory standards.
-
Full traceability of batches and expiration dates.
-
High picking speed during peak demand periods.
