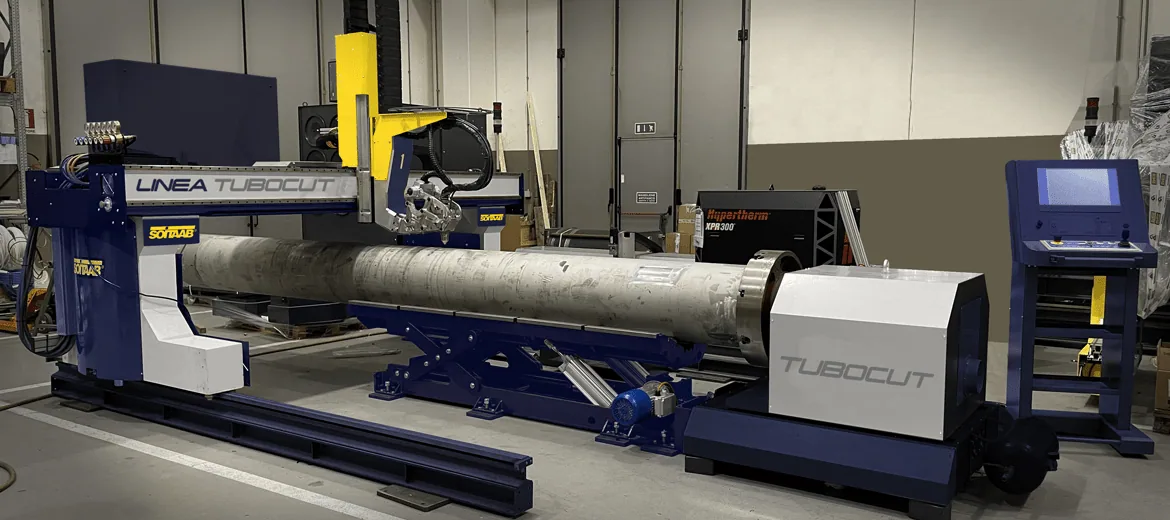

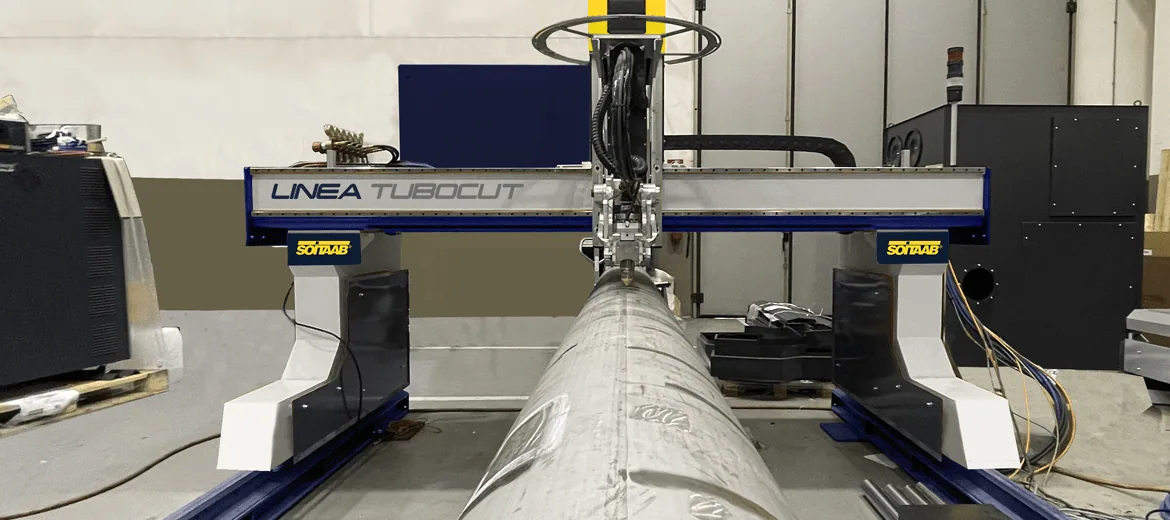

SOITAAB LINEAtech Linea TUBOCUT

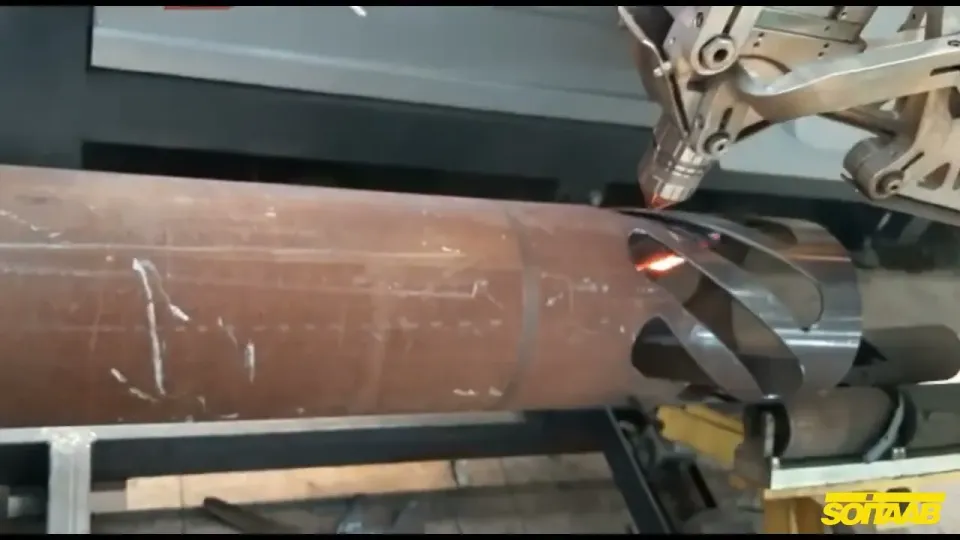

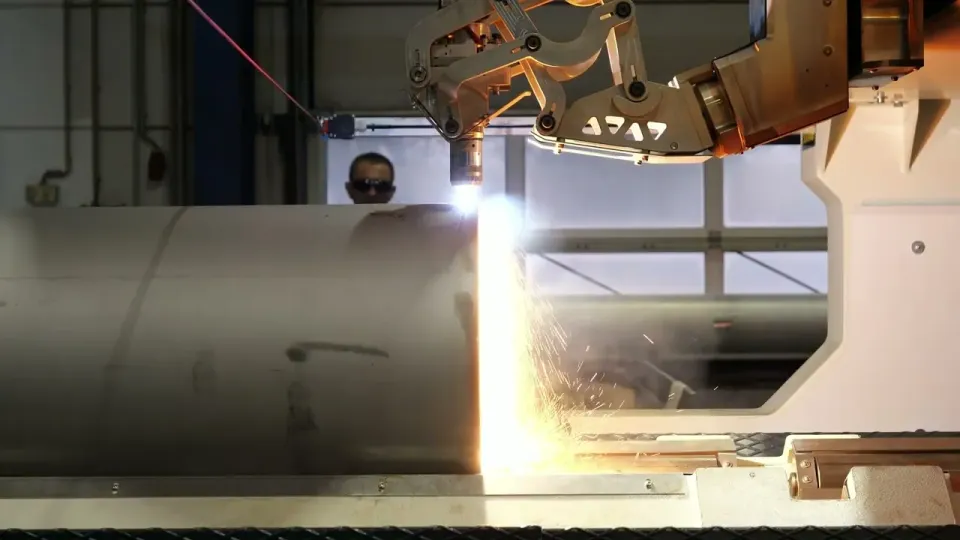

A specialized industrial machine designed for fast and smooth cutting of metal pipes and tubes of various shapes (round, square, and rectangular).

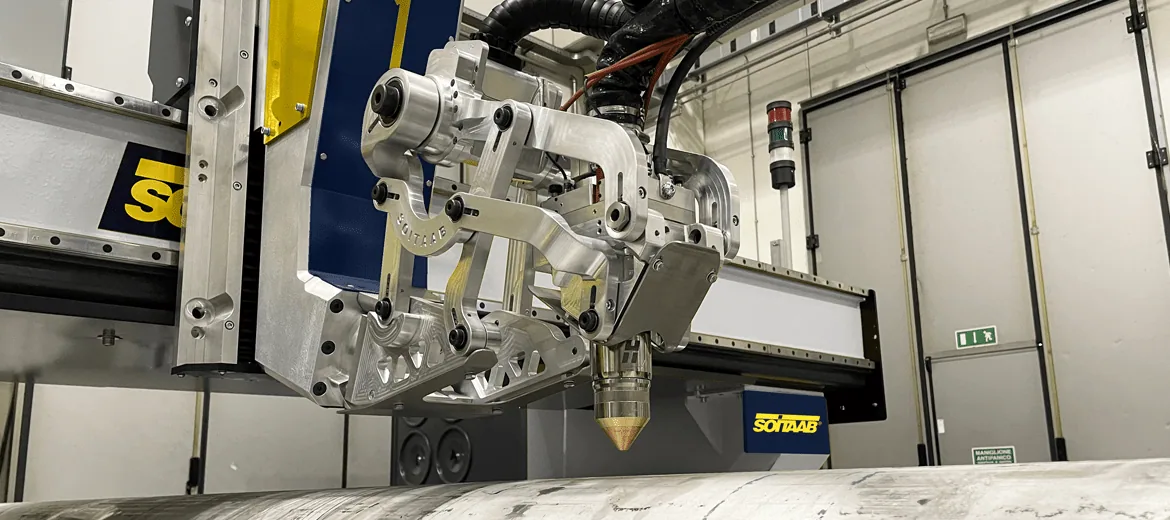

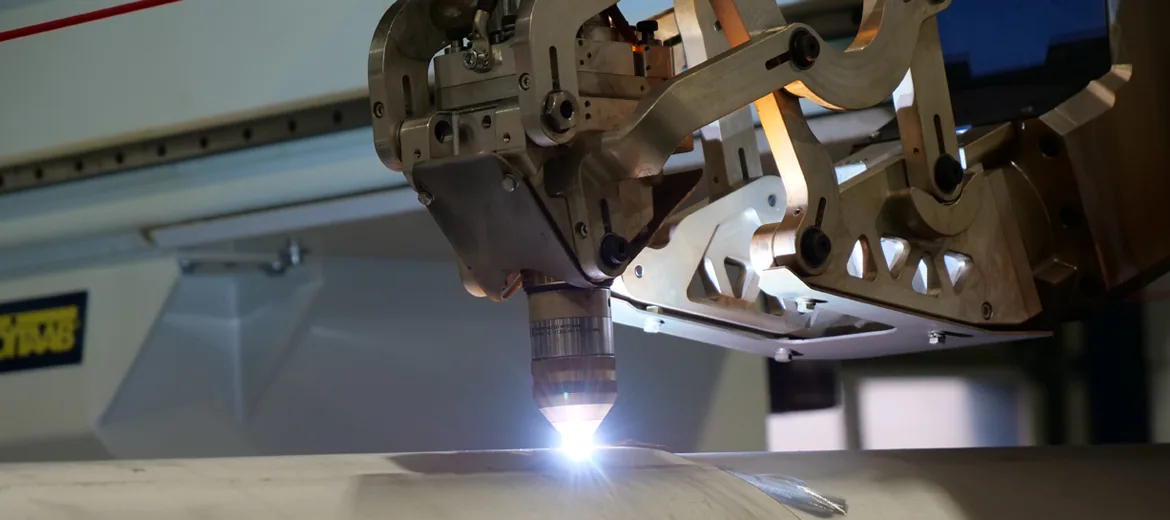

- Exceptional Versatility and Multitasking ("All-in-One"): The LINEA series machines make it possible to efficiently combine several manufacturing processes on a single technological platform. A single gantry can integrate high-precision plasma cutting (including 5-axis bevel cutting), traditional oxy-fuel cutting with up to 12 torches, heavy-duty mechanical drilling and tapping up to the ISO50 standard, as well as various marking methods (pin-stamp, plasma, inkjet, laser, etc.).
- Smart Digital Control and Process Automation: The proprietary SOITAAB CNC system with an intuitive color touchscreen comes equipped with a technological parameter database built on the company's long-standing experience. The CNC fully controls the automatic gas consoles and proportional valves for each torch. This eliminates manual setup errors, automates pressure adjustments, and guarantees perfect edge quality and high accuracy even when cutting small-diameter holes.
- Ideal Geometric Stability and Durable Structure: Frame designs are engineered with a margin of safety for heavy mechanical loads and intense thermal exposure. Most LINEA models feature a rigid dual-beam system (a front working beam with high-precision linear guides and a rear reinforcement beam). Heavy-duty machines are additionally equipped with special protective steel shields beneath the frame and on the side walls to effectively dissipate heat during extreme-thickness cutting.
- High Precision Drives and Time Savings: Dual longitudinal drives with digital brushless motors operate on absolute coordinates. The system continuously retains precise tool positions even during emergency or planned power shutoffs. This eliminates the need for the operator to perform zero-point homing procedures before each launch, significantly reducing downtime—especially when processing extra-long sheets (on tables up to 60 meters long or more).
| Technical Parameter | Specifications and Features |
|---|---|
| Processed pipe profile | Round cross-section, square, rectangular profile |
| Control and positioning | Execution options: manual or fully automatic positioning |
| Pipe diameter range | Depends on the base machine (RED: 76–500 mm; NOVA: 76–650 mm; NOVA+: 76–800 mm) |
| Pipe wall thickness (min / max) | From 3 mm to 20 mm |
| Workpiece length | 3000 mm, 6000 mm, and 12,000 mm |
| Chuck rotation speed | Up to 16 rpm |
| Max load capacity of roller support | Up to 250 kg per linear meter of pipe |
| Fume extraction system (aspiration) | Local extraction contour located directly behind the chuck |
| Pipe support design | Linear roller steady rest with manual height and support roller position adjustment |
| Optional support system equipment | Longitudinal roller support with automatic synchronized height adjustment via CNC signal |

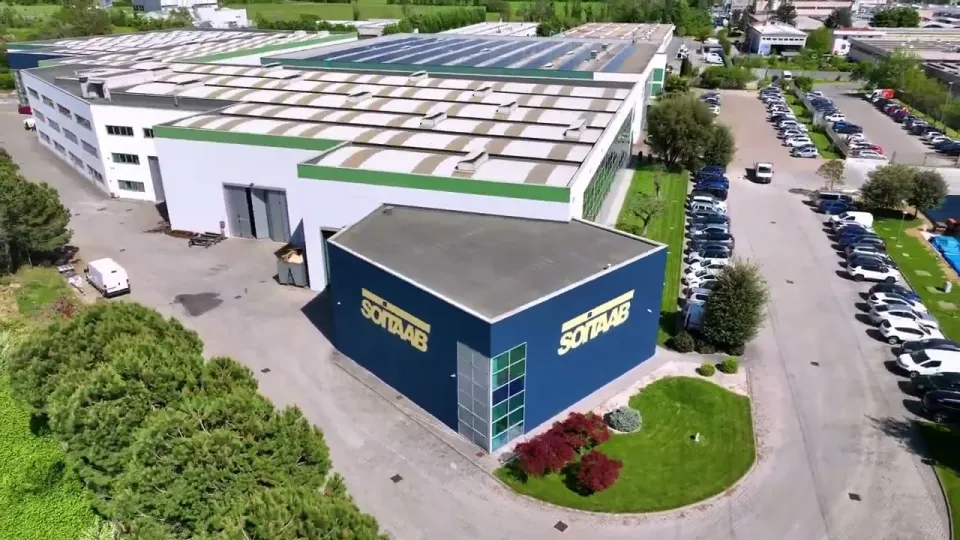

SOITAAB — an Italian industrial group and recognized international leader in the design and manufacture of high-tech CNC machines for thermal cutting (plasma, oxy-fuel, waterjet, and laser), as well as industrial band saws. For many years, the company has successfully supplied equipment to all continents. The enterprise's operations are certified according to the ISO 9001 standard, and a permanent demonstration area operates directly at the factory in Milan, where customers from around the world can conduct real test cuts before purchasing.
