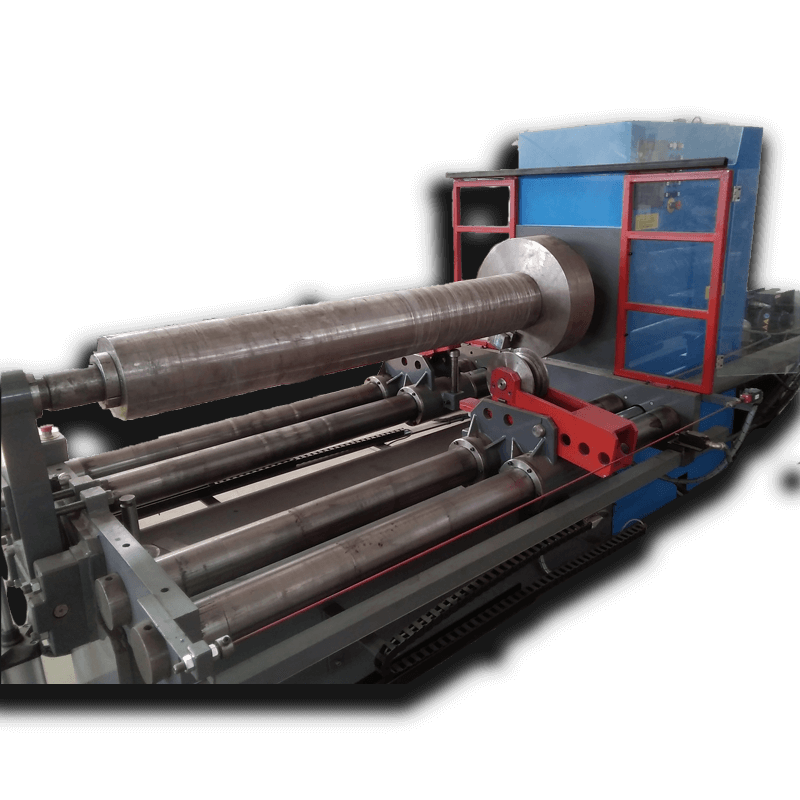

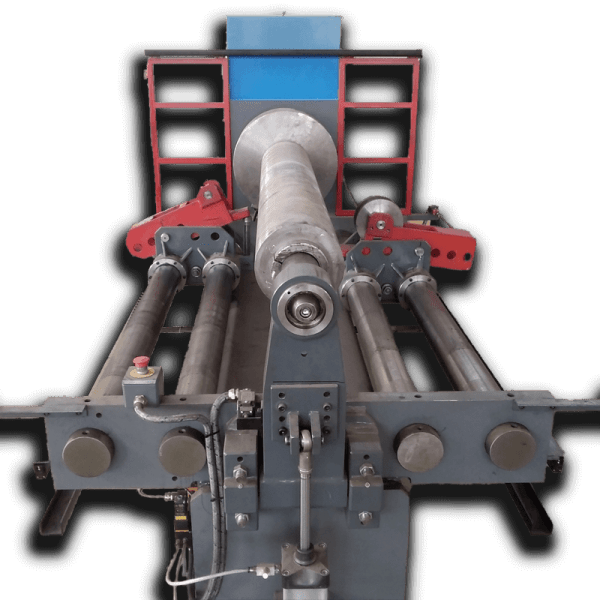

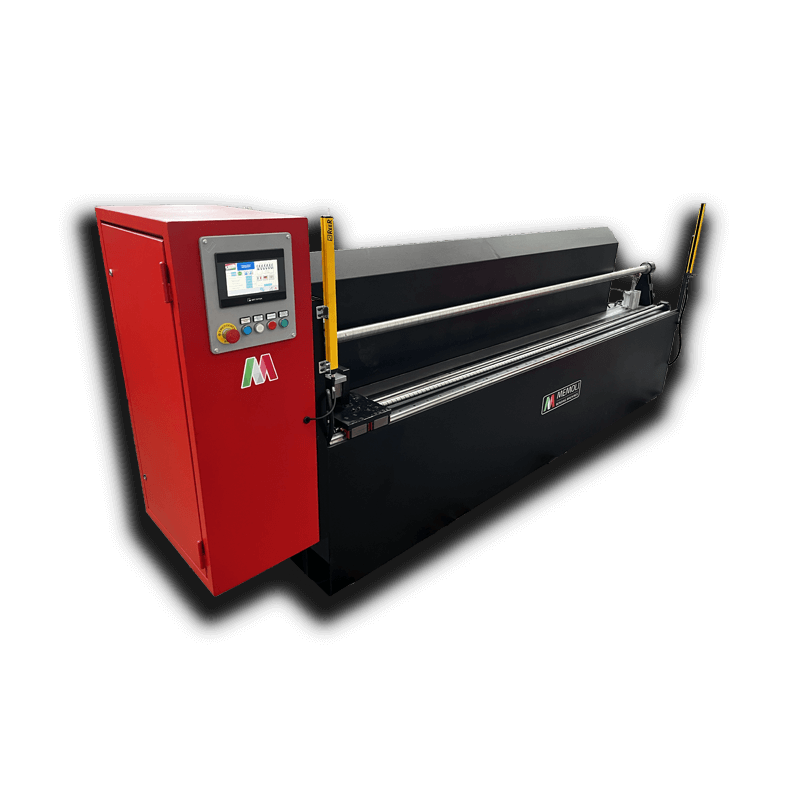

MEMOLI HLN Coiling Lathes
The HLN series of coiling lathes are completely electric CNC-controlled machines designed for the manufacture of springs and augers. Designed and built entirely by Memoli, they are an effective and efficient solution capable of machining round, flat, square bars and tubes.
The design of our winding machines starts with the needs of each single Customer: we build machines specifically to achieve high final standards and optimise production costs.
Their strength is not only the final product: thanks to the ‘CNC Coiling Program TouchScreen’, which provides the possibility to save your own designs as repeatable programmes, operation is extremely easy and fast.
GENERAL FEATURES
CNC Coiling Program Touch screen with internal memory 500 programs, expandable and remote connection via USB
Left or right-handed winding, with constant or variable pitch
Quick spring extraction system with automatic release
Rapid tool change
Perimeter safety with photocells
Variable speed
Wire size Ø 2 to Ø 80 mm
Flat size max. 70 x 10 mm
Spring length max. 3000 mm
CNC Coiling Control
System with parameters for wire diameter variation
Winding speed adjustment
Automatic pitch adjustment
Internal memory 500 programs, expandable
Remote connection
Machine diagnostics
Correction and storage of material elasticity
