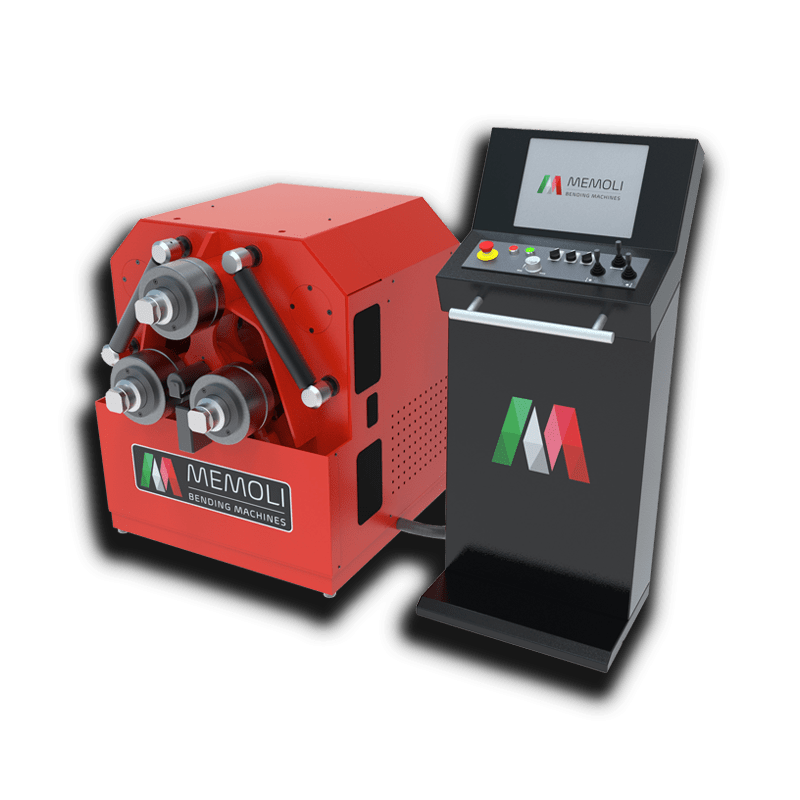

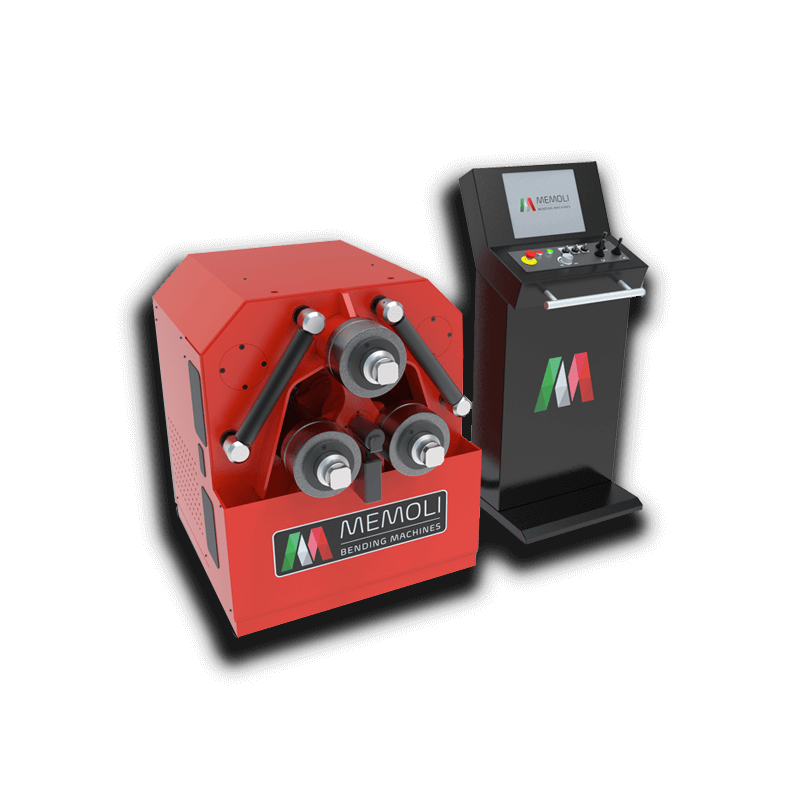

MEMOLI MEK 60-R Angle Roll CNC
The MEK 60-R three-roll hybrid profile bender was designed to meet the demands of an increasingly demanding customer base, with the need to bend all types of profiles and tubes with accuracy and very tight tolerances.
he three driving rolls are driven by a powerful electric gearmotor that guarantees high positioning accuracy, while the independent planetary movement of the two bottom rolls is provided by two powerful hydraulic cylinders.
The Memoli MEK 60-R bending machine is equipped with high-strength shafts and rolls, side support system, touch screen and CNC control system.
Thanks to Memoli’s specially developed CNC bending software, this profile bending machine can work in manual, semi-automatic and automatic modes.
This latest generation software is based on a Windows PC with a touch screen display; bending programmes can be created, managed and controlled intuitively without the operator needing to have any programming skills.
The 3D graphic simulation of the programmed workpiece will allow a visual check to be made before machining is performed.
GENERAL FEATURES
Three electric motorised rollers
Hydraulic planetary lower roller movement
Working position with vertical and horizontal axes
Working position with vertical and horizontal axes
Performing the bending process in one or more steps, even with different radii within a component
Creation of material library/springback diagrams for all materials
Interface with CAD software
Networking and integration into the existing IT infrastructure
Creation, management and backup of programme data independently of the workplace through network integration
Direct support from Memoli experts thanks to remote maintenance capability.
The Memoli MEK 60-R bending machine is equipped with high-strength shafts and rolls, side support system, touch screen and CNC control system.
Thanks to Memoli’s specially developed CNC bending software, this profile bending machine can work in manual, semi-automatic and automatic modes.
This latest generation software is based on a Windows PC with a touch screen display; bending programmes can be created, managed and controlled intuitively without the operator needing to have any programming skills.
The 3D graphic simulation of the programmed workpiece will allow a visual check to be made before machining is performed.
GENERAL FEATURES
Three electric motorised rollers
Hydraulic planetary lower roller movement
Working position with vertical and horizontal axes
Working position with vertical and horizontal axes
Performing the bending process in one or more steps, even with different radii within a component
Creation of material library/springback diagrams for all materials
Interface with CAD software
Networking and integration into the existing IT infrastructure
Creation, management and backup of programme data independently of the workplace through network integration
Direct support from Memoli experts thanks to remote maintenance capability.
Technical specifications
| MEK 60-R | |
|---|---|
| Motor Output | KW 3,5 |
| Rolling speed | 0-7 g/1’ |
| Shafts diameter | 60 mm |
| Rolls diameter | On request (220 mm std.) |
| Weight | 900 kg |
| Machine dimensions | 740 x 1020 x 1110 h. |
| Console dimensions | 590 x 710 x 1200 h. |
Maximum capacity (mm)
| STANDARD ROLLS | SPECIAL ROLLS | |||
|---|---|---|---|---|
| Profil | Dimension | Ø INT. MIN. | Dimension | Ø INT. MIN. |
 |
Max 70 x 15 | 500 | Small sections | 150 |
 |
Max 125x25 | 500 | Small sections | 150 |
 |
Max 40 x 40 | 500 | Small sections | 150 |
 |
Small sections | 500 | Max Ø 50 Min no limit |
500 150 |
 |
Special rolls only | 500 | Max O.D. 60/(2’’SCH40) Min no limit |
500 150 |
 |
Small sections | 500 | Max 50 x 50 x 6 | * |
